GHL series high-speed mixing granulator
GHL series high-speed mixing granulator is composed of powder materials and adhesives in a cylindrical container, which are fully mixed into wet soft materials by the bottom mixing slurry, and then cut into uniform wet particles by the side high-speed grinding paddle.
0519-88910291
Details

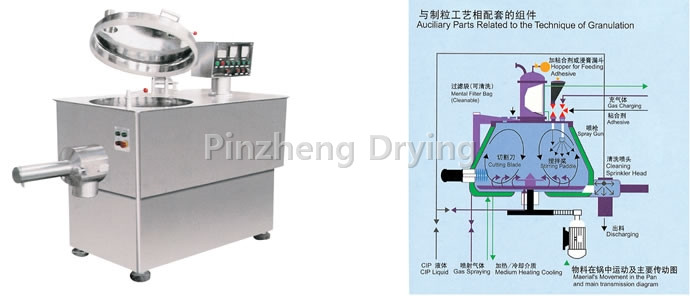

Working principle
  The powder material and adhesive are fully mixed into wet soft material by the bottom mixing slurry in the cylindrical container, and then cut into uniform wet particles by the side high-speed pulverizer.




Performance characteristics

  This machine adopts horizontal cylinder structure with reasonable structure.

  The inflatable seal drive shaft can be switched to water during cleaning.

  Fluidized granulation, the granulation is nearly spherical, and the fluidity is good.

  Compared with the traditional process, the adhesive is reduced by 25% and the drying time is shortened.

  Each batch is only dry mixed for 2 minutes and pelletized for 1-4 minutes, and the work efficiency is 4-5 times higher than the traditional process.

  It is completed in the same closed container, dry mixing - wet mixing - granulation, and the process is shortened.

  The whole operation has strict safety protection measures.

  It can be made into a jacket type according to user requirements.

Parameter


ModelABC×DEF
GHL-503209501250×8009701650
GHL-15042010001350×80010501750
GHL-20050011001650×94014502050
GHL-25050011601650×94014002260
GHL-30055012001700×100014002310
GHL-40067013001860×110015502410
GHL-60075015002000×123017502610


NameModel
50150200250300400600
Volume L50150200250300400600
Output kg/batch155080100130200280
Mixing speed r.p.m200/400180/270180/270180/270140/220106/15580/120
Mixed power kw4/5.56.5/89/119/1113/1618.5/2222/30
Cutting speed r.p.m1500/30001500/30001500/30001500/30001500/30001500/30001500/3000
Cutting power kw1.3/1.82.4/34.5/5.54.5/5.54.5/5.56.5/89/11
Compressed air consumption m3/min0.60.90.90.91.11.51.8
Weight kg50080010001300180022002600
VR
